Custom Pet Product Manufacturing Built on Material Science
Direct manufacturing facility providing in-house resin compounding, high-tonnage injection tooling (50T–1,200T), and certified compliance with international FDA 21 CFR, EU 10/2011, and strict ultra-low migration food-contact thresholds.
Ultra-Low Migration & Food-Contact Purity Matrix
Every pet bowl, smart feeder chute, and water dispenser component strictly complies with rigorous global food-contact safety standards and non-leaching polymer purity criteria.
| Testing Parameter | Strict Target Safety Baseline | US FDA 21 CFR & EU Benchmark | Sochen Lab Verified Result |
|---|---|---|---|
| Overall Migration (OML) [Multi-Simulant Extraction] | ≤ 10 mg/dm² (≤ 60 mg/kg specific limit) | Extractable fraction ≤ 2.6% (FDA 177.1520) | < 2.2 mg/dm² (Conform) |
| Oxidizable Organic Residues (Permanganate Index) | ≤ 10 mg/kg (60°C, 2h Extraction) | Zero hazardous organic leaching | 1.9 – 2.4 mg/kg (Conform) |
| Primary Aromatic Amines (PAA) Total Migration | Not Detected (ND, LOD = 0.01 mg/kg) | EU 10/2011 Non-detectable limit | ND (< 0.005 mg/kg) |
| Trace Heavy Metal Leaching (Lead / Pb equivalent) | ≤ 1.0 mg/kg (Acidic aqueous extraction) | ASTM F963 / CPSIA Lead ≤ 90 ppm | < 0.1 mg/kg (Conform) |
| Color Fastness & Additive Whitelist Protocol | Negative (Zero Bleed) + 100% Positive List | FDA 21 CFR 178.3297 Colorants | Negative / Fully Compliant |
Vertically Integrated Tooling & Compounding
Direct factory control over resin modification, high-cavity tooling, and clean automated molding.

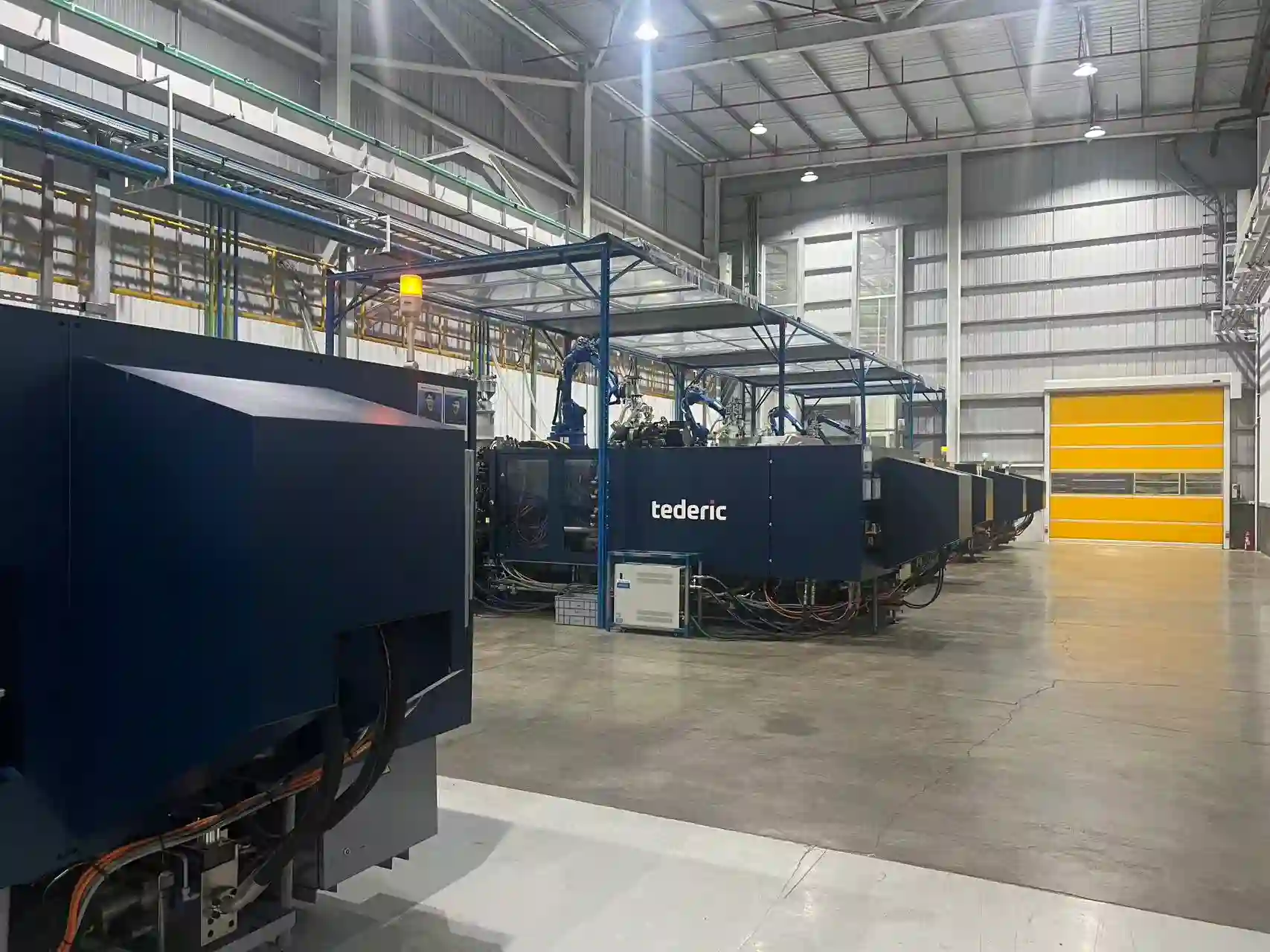

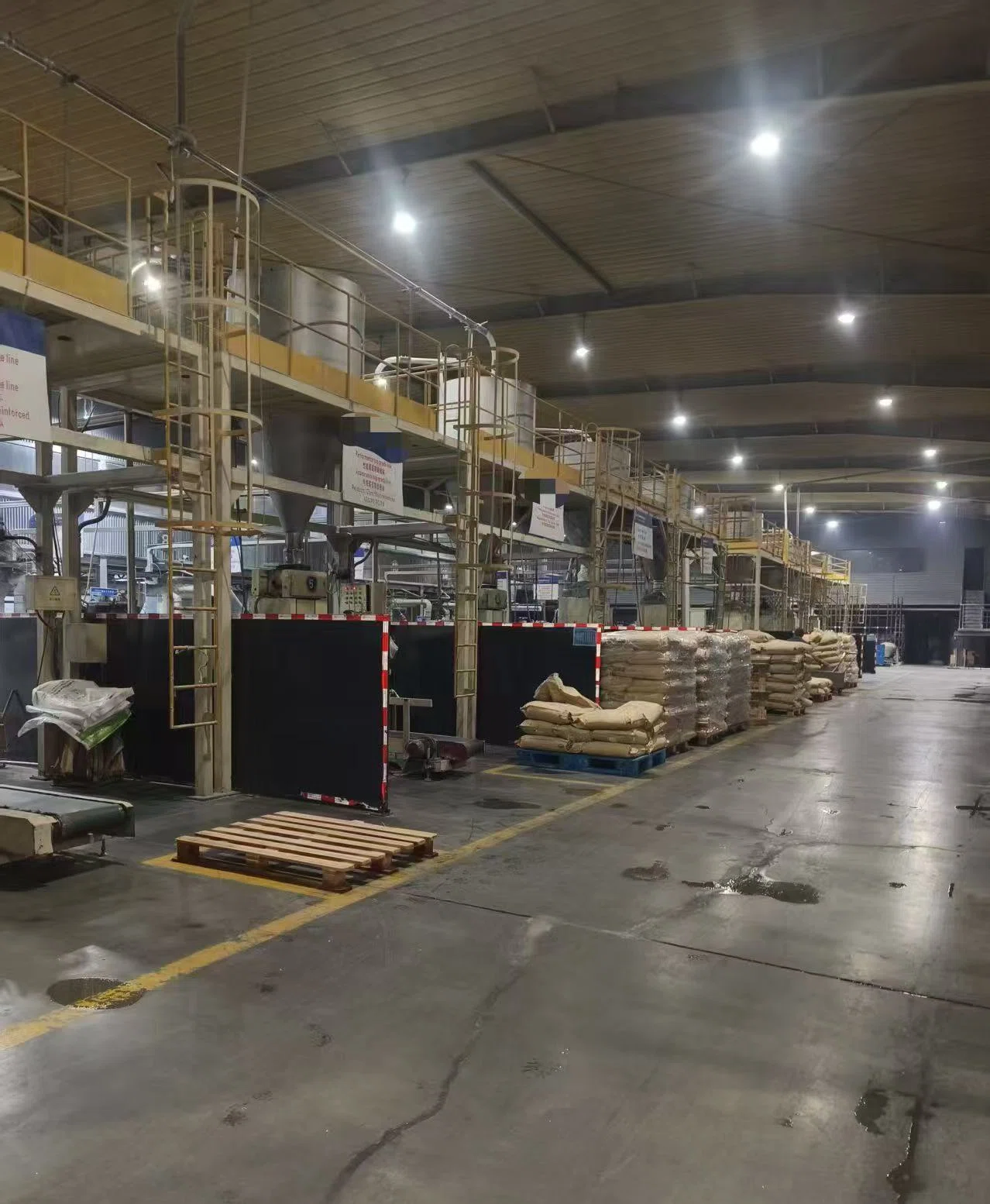

Polymer Modification & Formulations
In-house twin-screw compounding lines specializing in high-impact modified PP, anti-chew TPU/TPE elastomers, antimicrobial additives, and food-safe masterbatches.
Multi-Cavity Steel Mold Engineering
Tooling fabricated with imported high-grade steel (S136, H13, NAK80, 718H) with conformal cooling design and hot runner valve gates to eliminate part warpage.

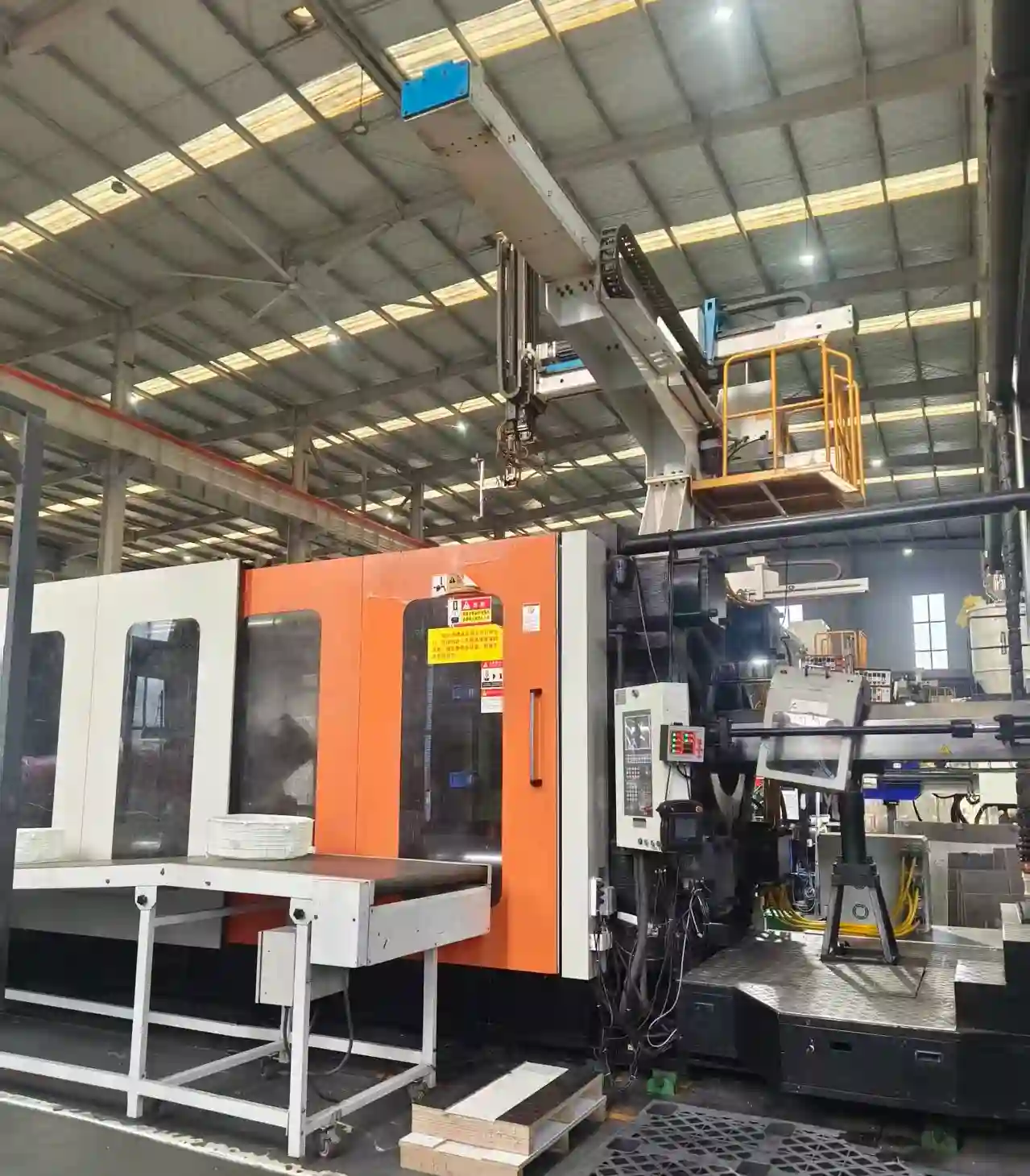

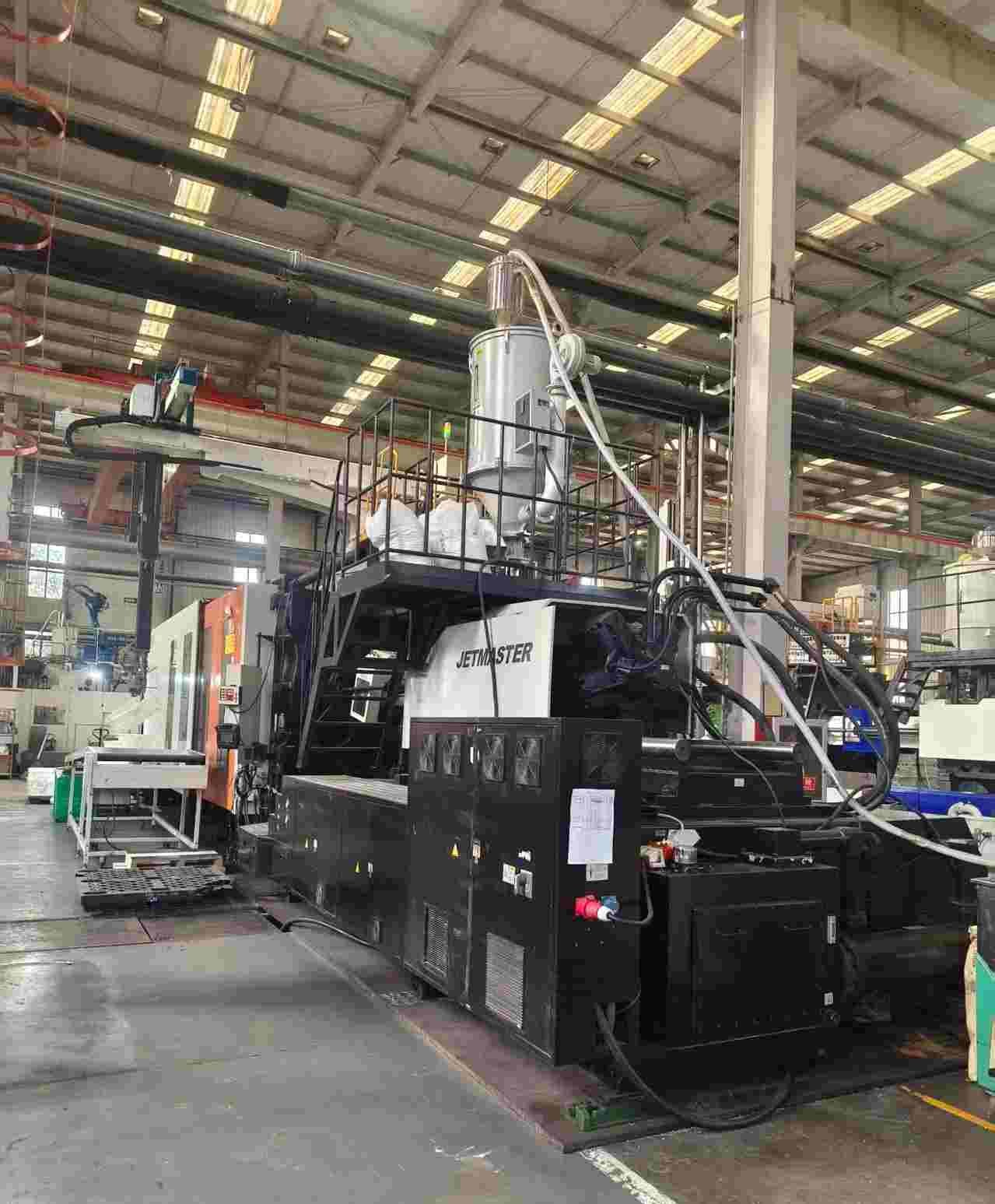

Automated Molding & Post-Processing
Injection press array from 50T to 1,200T equipped with 3-axis servo robots. Full secondary services including ultrasonic welding, laser marking, and drop-tested packaging.
Custom Application & Material Matrix
Specific resin formulations, engineering targets, and compliance standards categorized by product line.
| Product Line | Resin Formulation & Grade | Critical Mechanical Targets | Safety Standards & Compliance | Action |
|---|---|---|---|---|
| Smart Feeders & Water Bowls | Food-Contact Modified PP / ABS Antimicrobial silver-ion additive option | Zero warpage on food chutes, anti-jam POM gears, IP65 waterproof seals. | FDA 21 CFR 177.1520 EU 10/2011 Compliant | DFM Review |
| Anti-Chew Toys & Teeth Cleaners | Tear-Resistant TPU / Medical TPE Shore A 40–85 hardness custom blend | Tear strength ≥ 45 kN/m (ISO 34-1), zero brittle fractures under cyclic bite force. | FDA 21 CFR 177.2600 EN71-3 / REACH SVHC Free | DFM Review |
| Heavy-Duty Crates & Playpens | High-Impact Copolymer PP UV-stabilized (UV 326 / Tinuvin 770) | Charpy Notched Impact ≥ 14 kJ/m² at -20°C, 120kg vertical stacking strength. | ASTM F963 Drop Test ISTA 3A Transit Safe | DFM Review |
| Pet Air Purifiers & Smart Housings | Flame-Retardant ABS / Anti-Static PP Surface resistivity 10⁹–10¹¹ Ω | Acoustic resonance dampening (< 32 dB air channel), precision snap-fit latches. | UL94 V-0 Flame Rating RoHS 2.0 / CE / FCC | DFM Review |
5-Stage Project Delivery System
Strict quality gates ensuring zero tooling rework and compliant mass manufacturing.
Gate location, wall thickness check, draft angle optimization, and formal quote within 24–48 hours under NDA.
Material compounding validation. Functional prototyping via CNC or SLA/SLS with production-grade plastics.
High-speed CNC & EDM mold machining in hardened steel (S136/H13). T1 samples with full CMM report.
Automated multi-cavity injection molding, ultrasonic welding, secondary assembly, and continuous in-line QA.
Migration test certification, barcode retail packaging, ISTA drop test, and DDP/FOB global export.
Start Your Custom Pet Hardware Project
Upload 3D CAD files (.STEP, .IGES, .SLDPRT, .PDF). Our materials & tooling engineering team will evaluate moldability and provide a quote within 24 hours under NDA.
